Delivery list:

Volumes of a chamber in ml	Chamber Size (Diameter x Height in mm)	Electrodes Holes (Quantity x Diameter in mm)	Gas Holes (Quantity x Diameter in mm)	inner/outer Diameter of Membrane channel in mm
4 x 30 ml	Φ40 x 32 mm	4 x Φ6.2 mm	8 x Φ3.2 mm	Φ16 mm / Φ30 mm
4 x 50 ml	Φ40 x 42 mm	4 x Φ6.2 mm	8 x Φ3.2 mm	Φ16 mm / Φ30 mm
4 x 100 ml	Φ50 x 57 mm	4 x Φ6.2 mm	8 x Φ3.2 mm	Φ16 mm / Φ30 mm
4 x 150 ml	Φ60 x 65 mm	4 x Φ6.2 mm	8 x Φ3.2 mm	Φ16 mm / Φ30 mm
4 x 200 ml	Φ60 x 77 mm	4 x Φ6.2 mm	8 x Φ3.2 mm	Φ16 mm / Φ30 mm
4 x 250 ml	Φ70 x 72 mm	4 x Φ6.2 mm	8 x Φ3.2 mm	Φ16 mm / Φ30 mm
4 x 300 ml	Φ70 x 85 mm	4 x Φ6.2 mm	8 x Φ3.2 mm	Φ16 mm / Φ30 mm

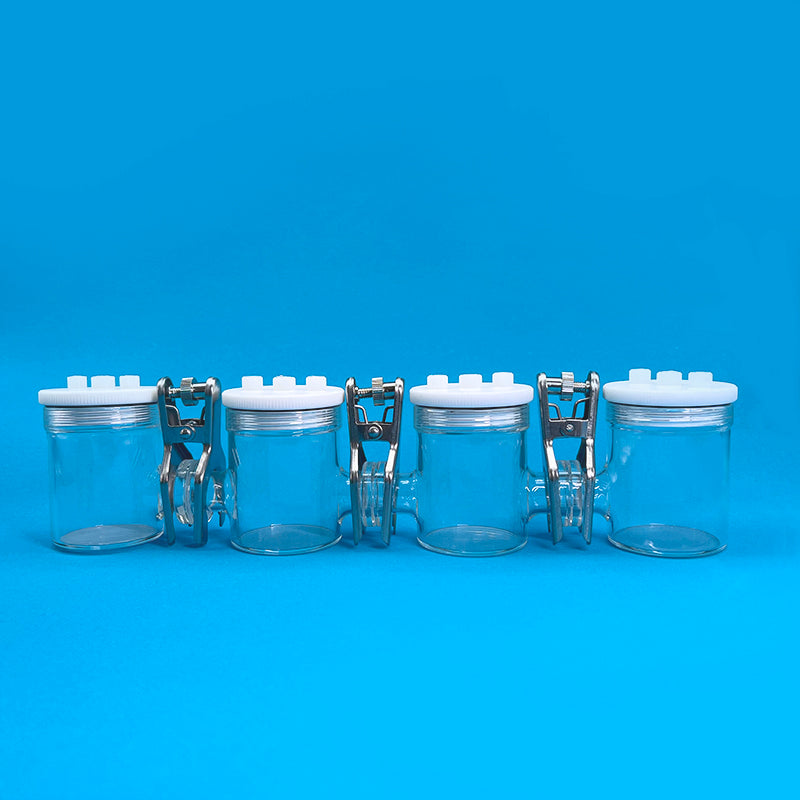

Quattro chamber H-cell membrane sealed electrochemical reactor, capacity 30 to 300 ml
